Roof Hatch Control Unit 30-6000
Switches & Controls

Roof Hatch Control Unit 30-6000

Controls one or two electric roof hatches

Specified by European bodybuilders for 20+ years · EMC test report available
€175ex VATRetail price €219
€211.75 incl. 21% VAT · free EU shipping from €499.99 · ex-VAT invoicing for trade accounts
Article no. 30-6000

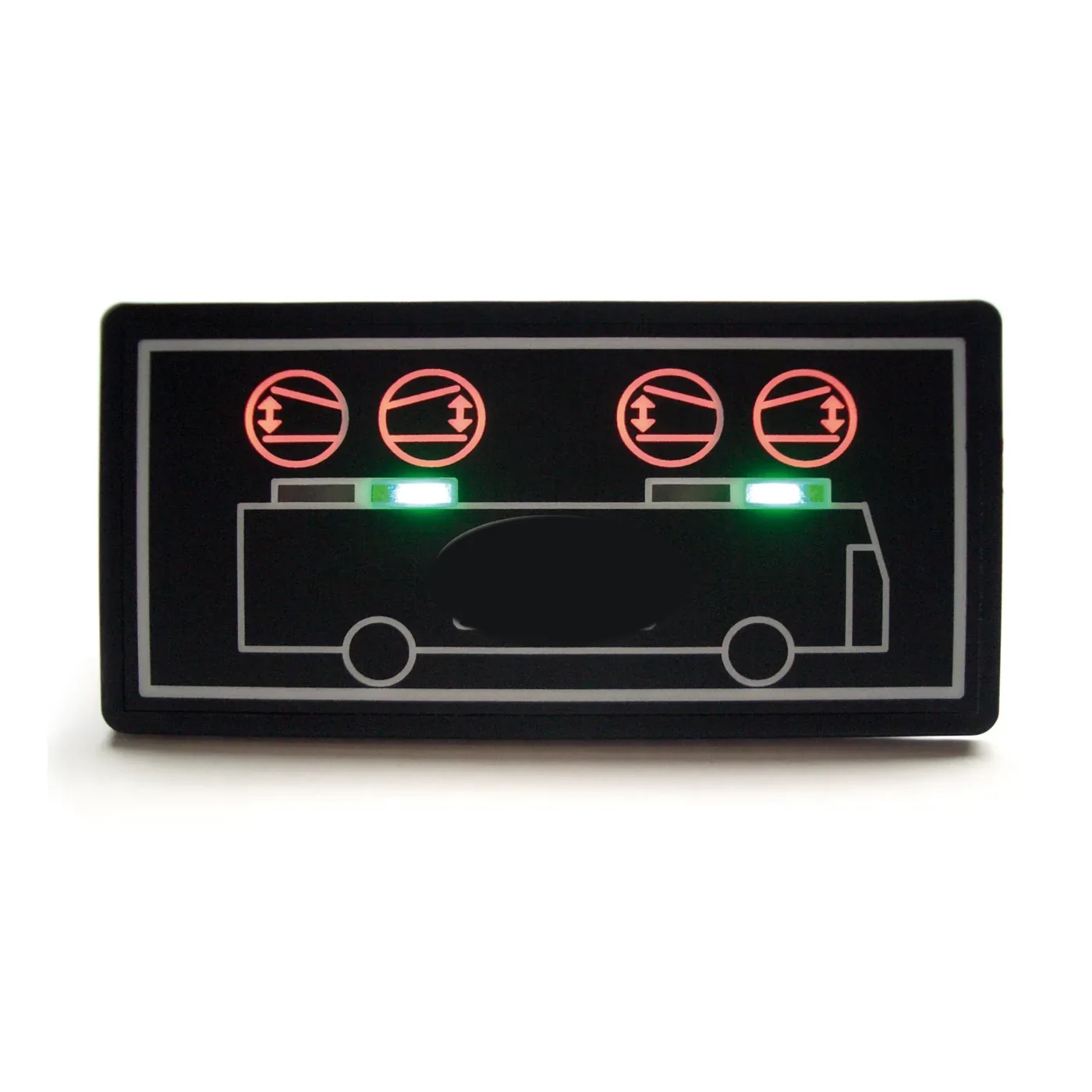

The 24V control panel for our electric roof hatches. Opens and closes the front and rear of one or two hatches, shows dome position on green LEDs, auto-closes when the ignition goes off, and still allows ventilation when parked.

Always use the 30-6000 with our electric roof hatches. This compact 24V control unit manages one or two hatches: open or close the front and rear side independently, and read the dome position on the green LED display.

Safety and comfort are built in. The unit closes the hatches automatically when the ignition key is turned off, but the hatch can still be opened for ventilation while parked. The display has a current-save function and the push buttons are illuminated with orange LEDs for operation in the dark.

EMC approved and homologated according to EC 2004/104. For 12V vehicles a 12V to 24V converter is available on request.

Key features

  • Controls 1 or 2 electric roof hatches
  • Open/close front and rear side separately
  • Green LED dome position display
  • Auto-close when ignition is switched off
  • Ventilation position available with ignition off
  • Orange LED illuminated push buttons
  • EMC approved, homologated EC 2004/104

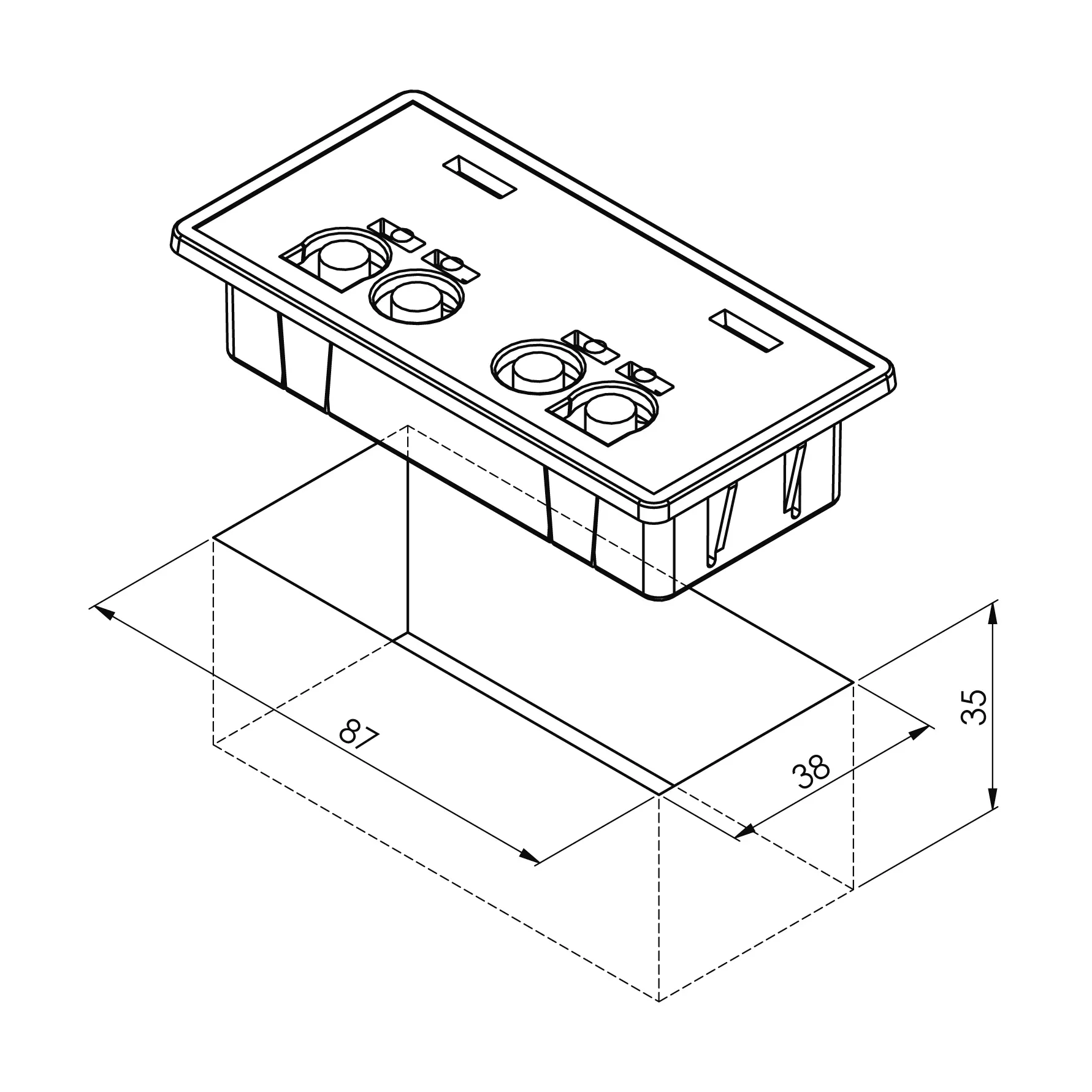

  • 96 x 49 x 28 mm, 24V
Ideal for:Buses & coachesAmbulancesHorse trailers
Voltage24V (12V via converter, on request)
Controls1 or 2 electric roof hatches
Dimensions96 x 49 x 28 mm
ApprovalsEMC approved, EC 2004/104
DisplayGreen LEDs (position), orange LEDs (buttons)
Article no.VariantPrice ex VATIncl. 21% VAT
30-6000Control Unit 24V€175€211.75
Do I need one unit per hatch?

No. One 30-6000 controls one or two electric roof hatches.

My vehicle is 12V. Can I use it?

Yes, with a 12V to 24V converter (available on request, one per control unit).

Complete the system

Goes well with the Control Unit.

Shop all
Electric 24VEMC approved

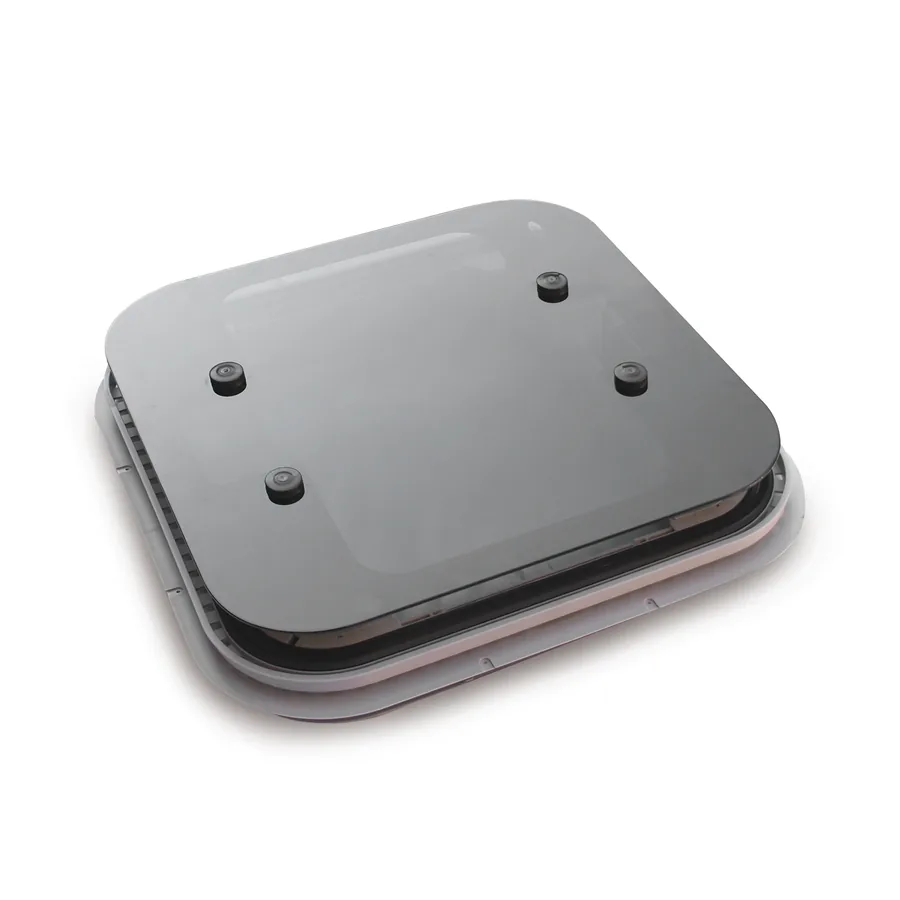

Roof Hatch Electric 530 x 530
Roof Hatches

Roof Hatch Electric 530 x 530

Push-button comfort, ECE 43R dome

Retail price €1,059€515ex VAT€623.15 incl.
Waterproof11 to 30V

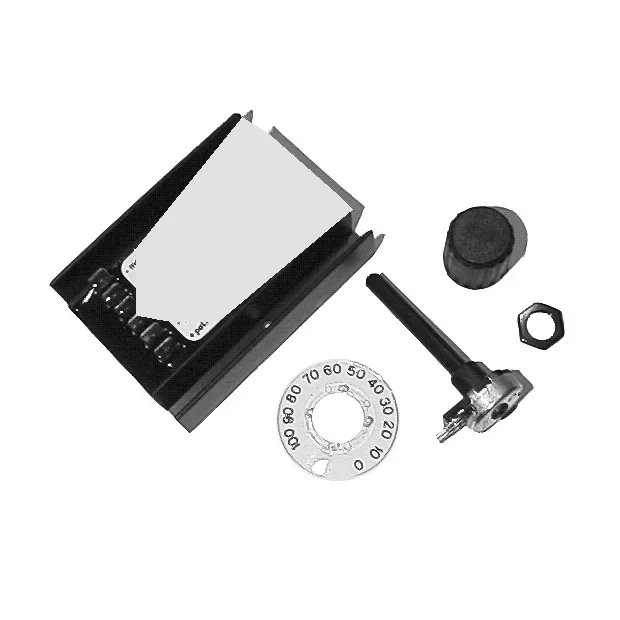

Speedcontrol 30-3004
