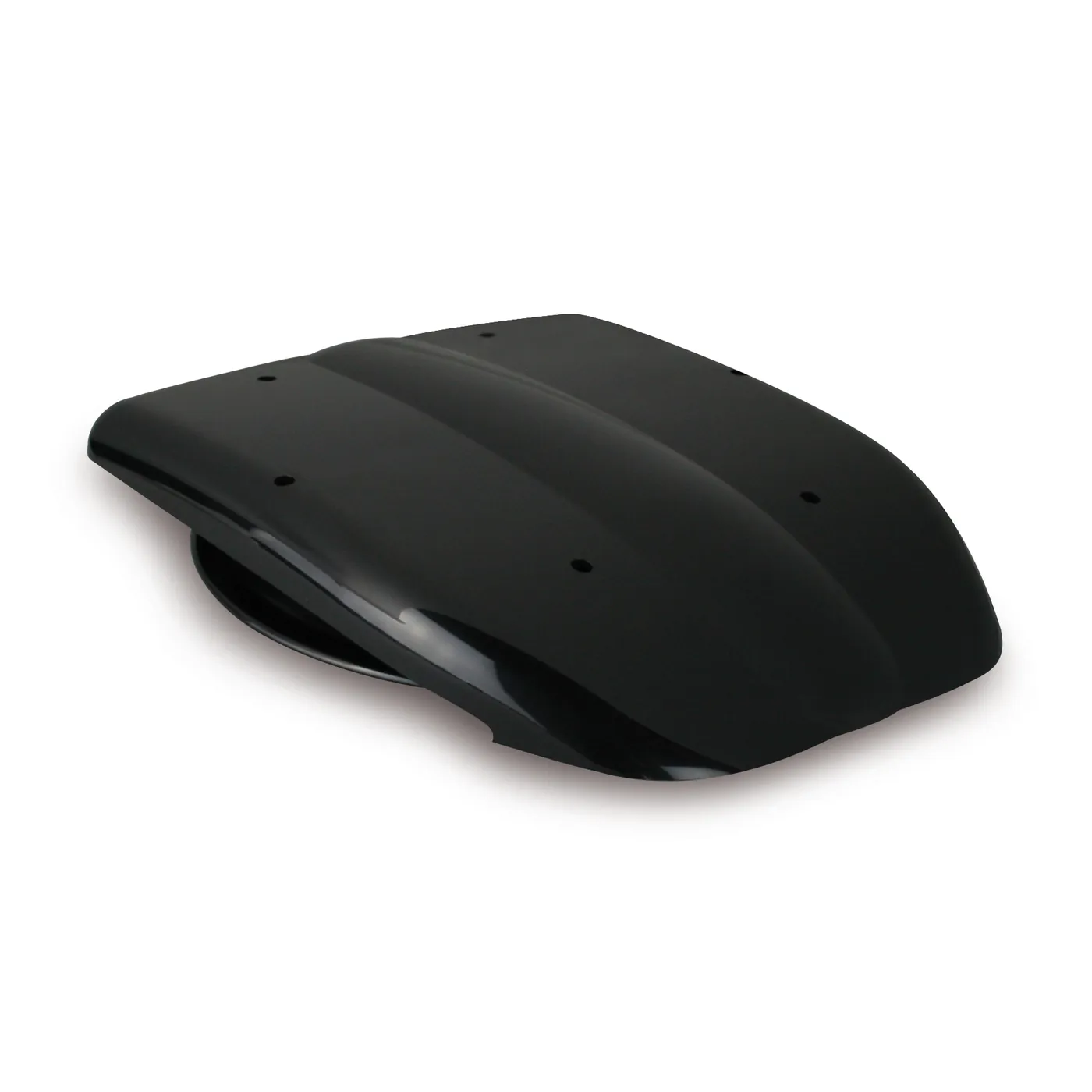

Le Mans Rooftop Ventilator
Rooftop Ventilators

Le Mans Rooftop Ventilator

The 850 m³/h benchmark in vehicle ventilation

Specified by European bodybuilders for 20+ years · EMC test report available
€149RRP €185
Incl. 21% VAT · ex-VAT for trade accounts · free EU shipping from €150
Article no. 02-2200
Voltage
Colour
Complete the set and save 10%
Le Mans Complete KitRoof fan + switch + closable valve. Everything for one 230 mm hole. €201 €223.90
View kit
Frequently added
Total with selected add-ons

The most popular electric roof fan for ambulances, horse trucks, buses and commercial vehicles. 850 m³/h of suction or blowing power under a streamlined cover, available in 12V and 24V, white or black.

The Le Mans is where style meets raw airflow. A sleek, low-profile cover (only 64 mm above the roof, so it sits happily next to solar panels) hides a motor that moves 850 m³/h in either direction: suck hot, humid or contaminated air out, or blow fresh air in. It is the ventilator that bodybuilders across Europe specify when a vehicle simply has to stay fresh.

Choose 12V for vans, campers and passenger vehicles, or 24V for trucks, coaches and buses. Both versions are EMC approved, so they will not interfere with your vehicle electronics. Prefer a passive solution? The motorless version uses the same 230 mm roof cut-out and can be upgraded to electric later.

Finish the installation with a 3-way switch (blow / off / suck), an optional speed controller and one of our interior valves or grilles. Everything fits the same 230 mm opening.

Key features

  • 850 m³/h airflow, suction and blowing
  • 12V or 24V motor, 80 W, 2600 rpm
  • Only 52 dB(A) at full speed, quieter with speed control

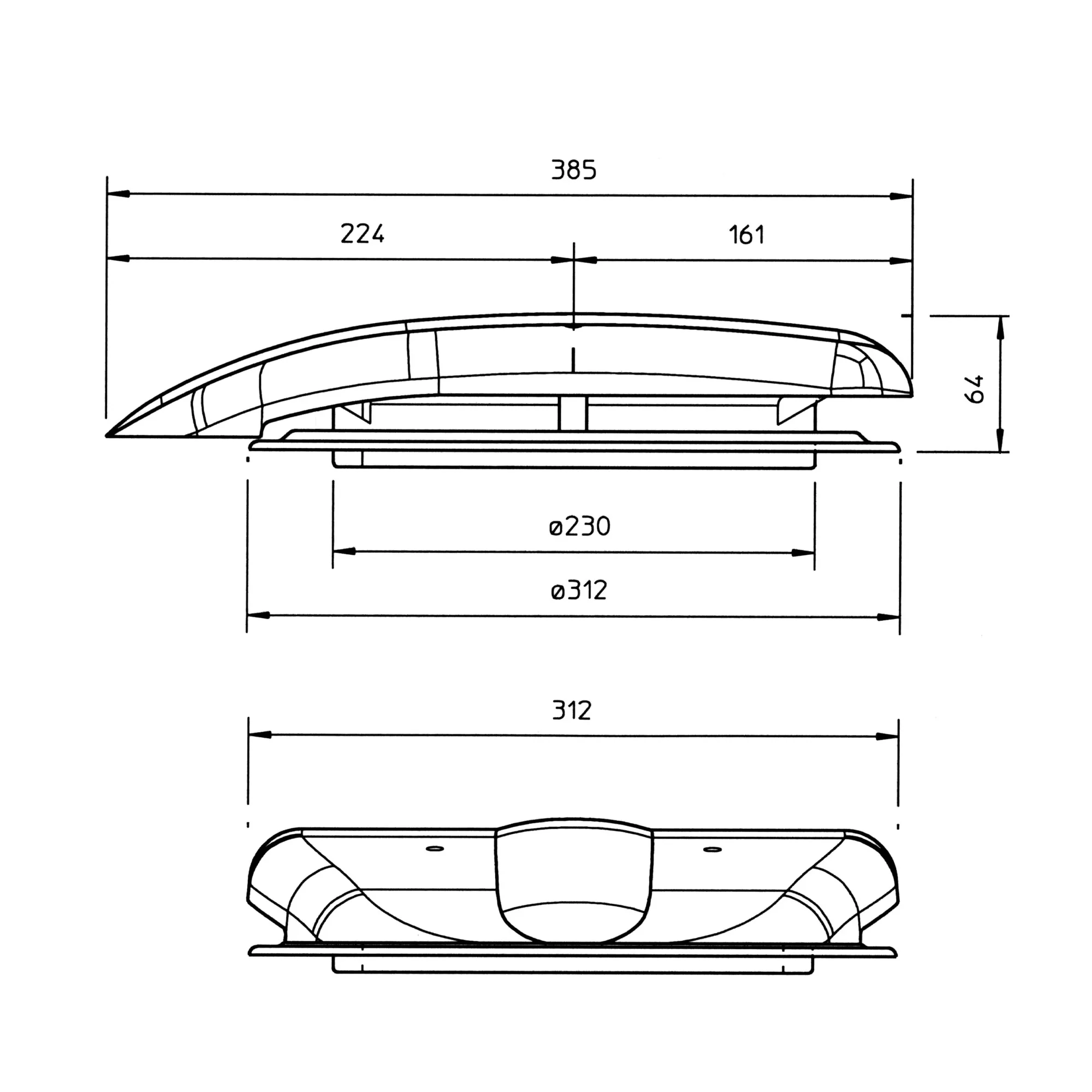

  • Low profile: 64 mm above the roof, 385 x 312 mm footprint
  • Streamlined ABS roof ring with PA6 cover, 1.3 kg
  • Roof opening 230 mm (245 mm with ring)
  • EMC approved motor, test report available
  • Rain-resistant design, snow filter optional
Ideal for:Commercial vansHorse trailersAmbulancesBuses & coachesCampersLivestockMarine
Airflow850 m³/h
Voltage12V or 24V DC
Power80 W (approx. 6 A at 12V)
Nominal speed2600 rpm
Noise level52 dB(A)
FunctionSuction and blowing (reversible)
Roof openingØ 230 mm (outer ring Ø 245 mm)
Outer dimensions385 x 312 mm, 64 mm high
Weight1.3 kg
MaterialsABS roof ring, PA6 cover
ColoursWhite RAL 9010 or Black RAL 9005
ApprovalEMC approved
AccessoriesSwitch, speed control, interior valve, snow filter
Article no.VariantPrice incl. VAT
02-220012V · White€149
02-2200-ZW12V · Black€149
02-230024V · White€149
02-2300-ZW24V · Black€149
02-2900Motorless · White€95
How large does the roof opening need to be?

A 230 mm hole. The roof ring covers up to 245 mm, so a slightly oversized cut is no problem.

Is it loud?

At full speed the Le Mans measures 52 dB(A). Add the optional speed controller to run it quietly at a fraction of the speed, which most camper and ambulance users do at night.

Is it waterproof?

The Le Mans is designed to shrug off heavy rain in normal use. For extreme conditions, add the snow filter, which also keeps out insects.

Which voltage do I need?

12V for passenger cars, vans and most campers; 24V for trucks, coaches and buses. Check your vehicle's system voltage before ordering.

How do I mount it?

Cut a 230 mm hole, protect the edge against corrosion, point the arrow on the ring in the driving direction and bond the ring with an MS polymer adhesive or screw it through the eight rim holes. Fit the interior grille or valve before wiring.
