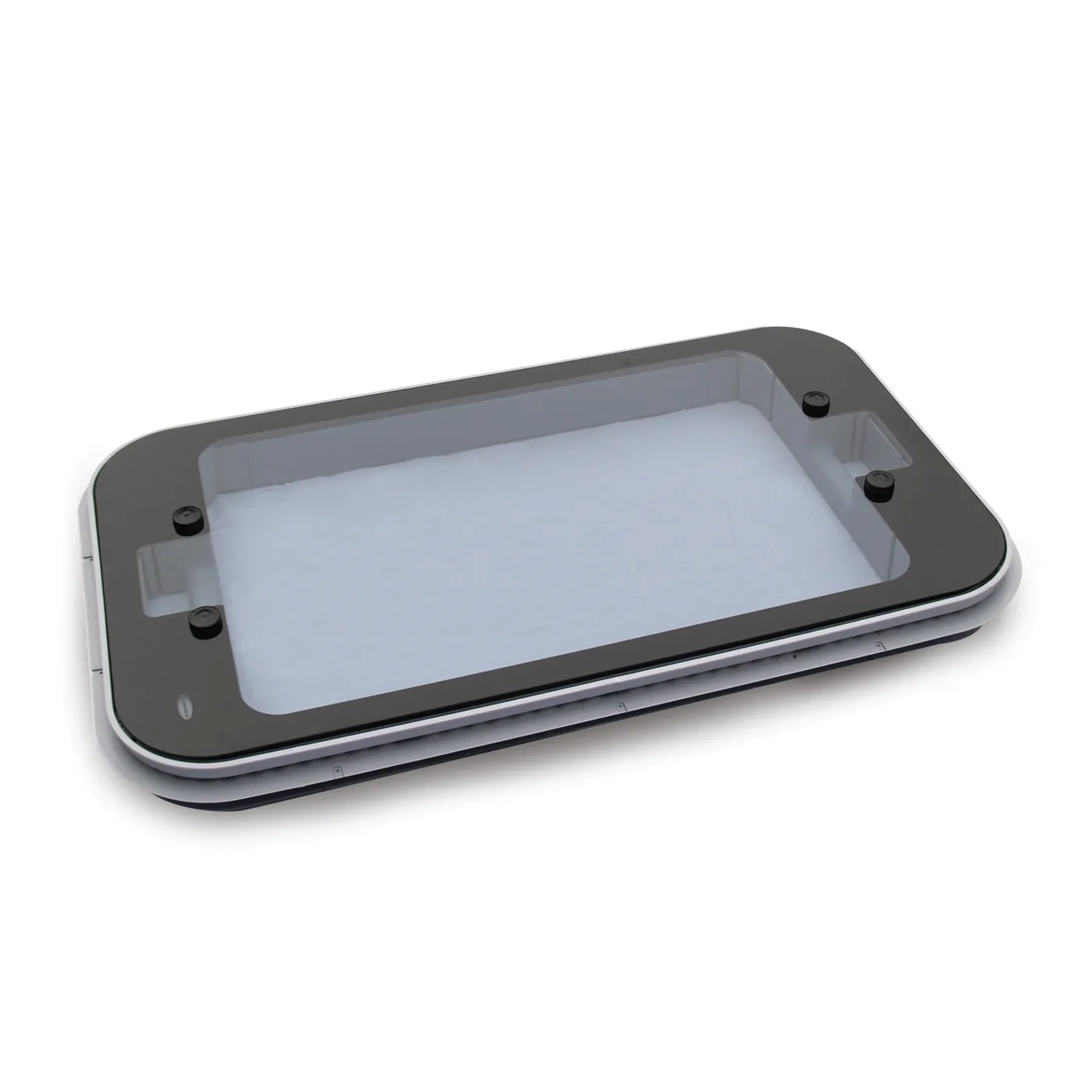

Roof Hatch Electric 970 x 530 Emergency Exit

Our flagship roof hatch redefines safety and comfort for buses, coaches and emergency vehicles. It combines an EC 2001/85 compliant emergency exit with electric operation: open front or rear from the 30-6000 control unit, read the position on the display, and let it close automatically when the ignition goes off.

The standard dark tinted glass dome is homologated ECE 43R and reduces glare and heat. The hatch is EMC approved and homologated EC 2004/104, fits roof thicknesses from 30 to 70 mm, and comes with high-quality gaskets, a pre-drilled outer frame (1080 x 640 mm) and a break-glass hammer.

24V as standard; for 12V vehicles a converter is available on request. Always combine with the 30-6000 control unit.

Key features

• Aperture 970 x 530 mm, electric 24V
• Emergency exit according to EC 2001/85
• Dark tinted glass dome homologated ECE 43R
• EMC approved, homologated EC 2004/104
• Suits roof thickness 30 to 70 mm

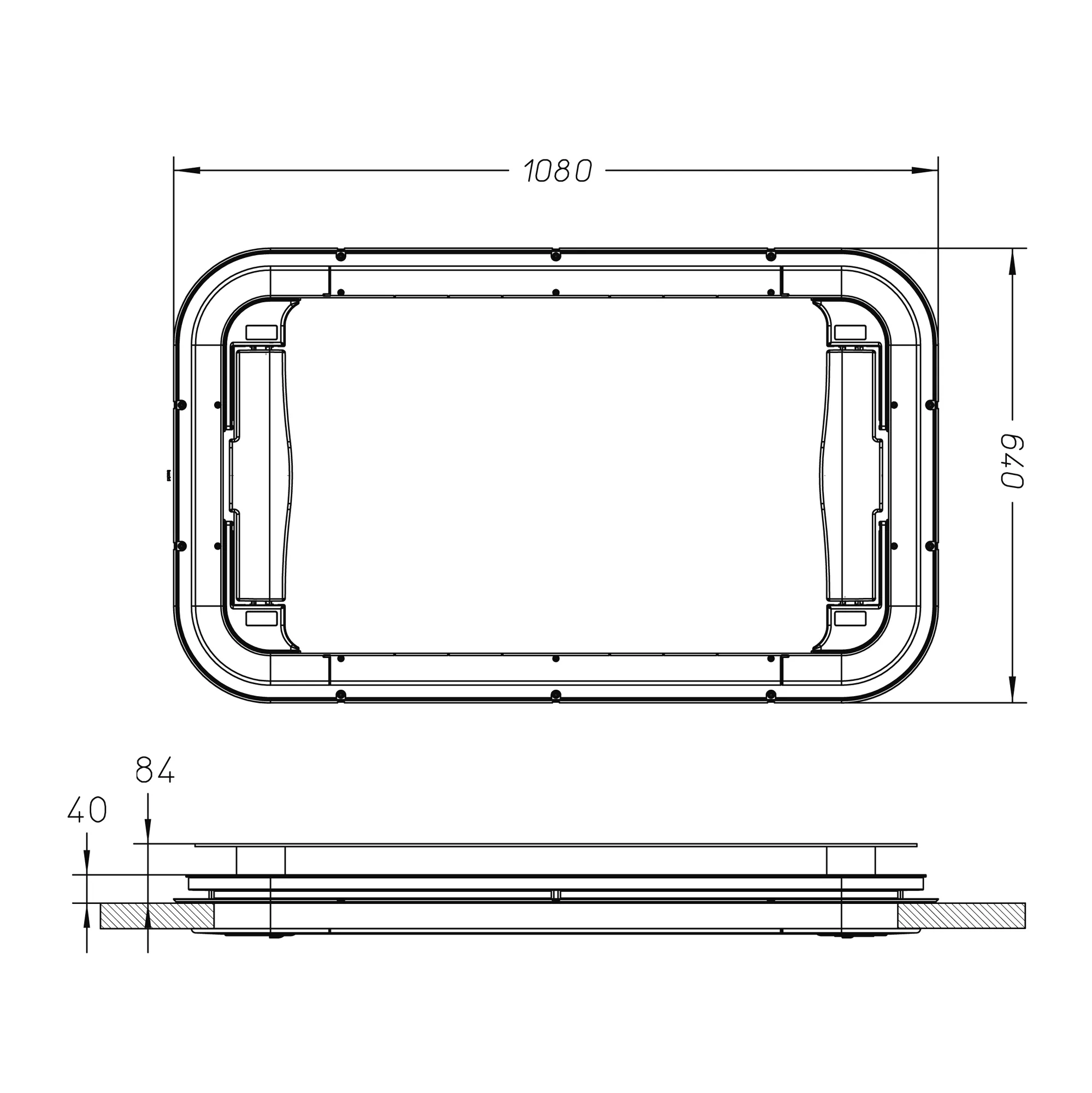

• High-quality gaskets, pre-drilled outer frame 1080 x 640 mm
• Break-glass hammer included
• Use with control unit 30-6000
