Home / Shop / Switches & Controls / Speedcontrol
Waterproof11 to 30V
Speedcontrol 30-3004
Switches & Controls

Speedcontrol 30-3004

0 to 100% stepless control, waterproof housing

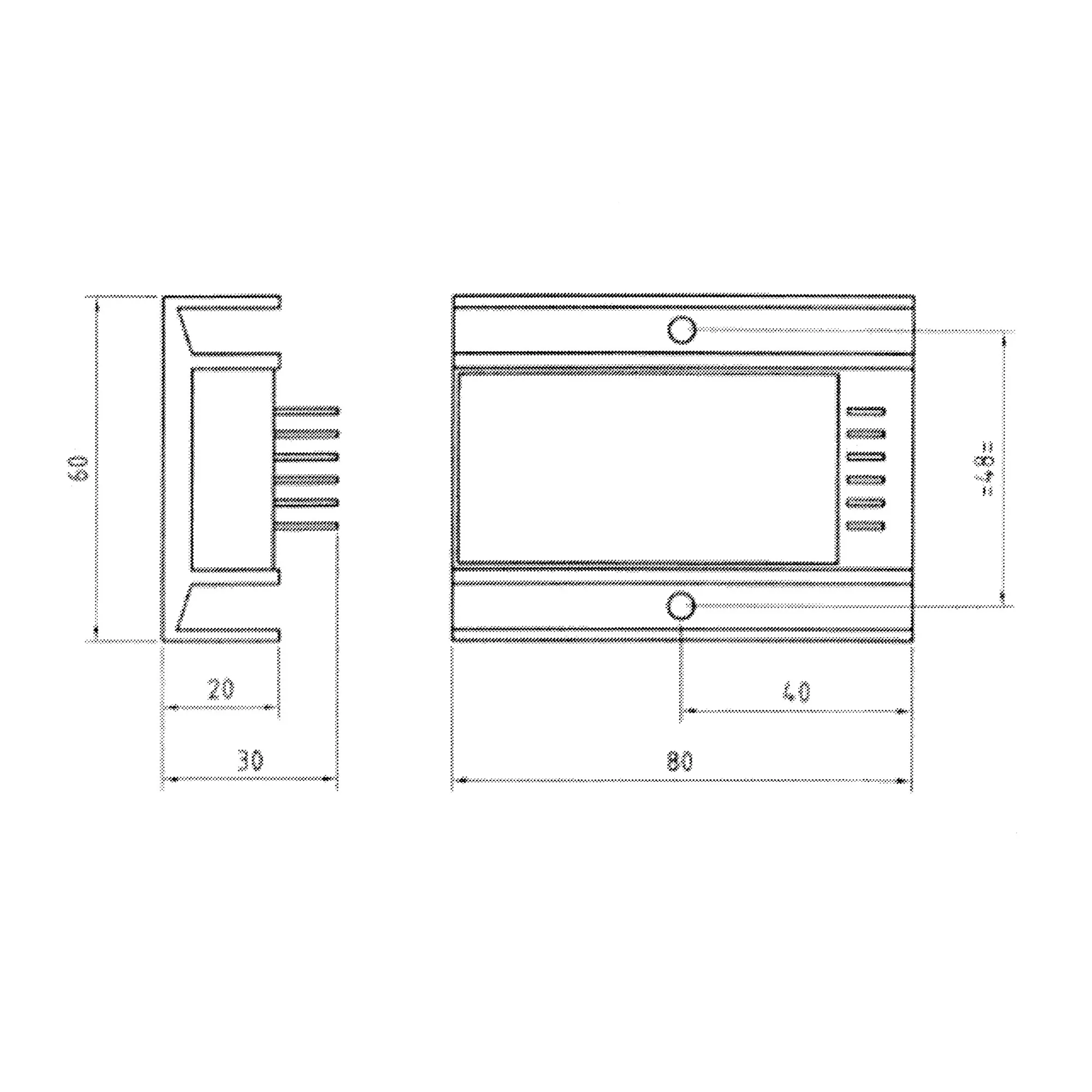

Specified by European bodybuilders for 20+ years · Dimensional drawing on this page
€75ex VATRetail price €99
€90.75 incl. 21% VAT · free EU shipping from €499.99 · ex-VAT invoicing for trade accounts
Article no. 30-3004

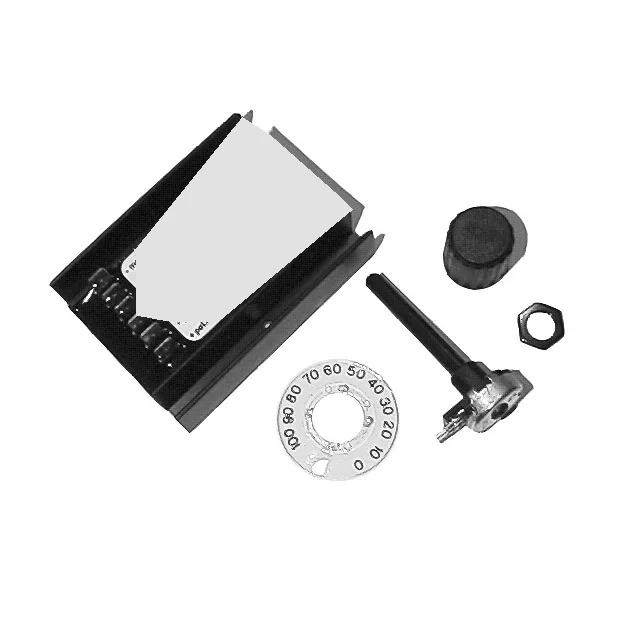

Stepless speed controller for DC roof fans. Dial the Le Mans down for silent night ventilation or run it flat out on hot days. 25 A continuous, waterproof housing, one unit can drive several ventilators.

The Speedcontrol lets you run any of our DC roof fans at exactly the speed you need: from a silent trickle to full power. The range is stepless from 0 to 100%, and at the zero position the unit draws no current at all.

Rated for 11 to 30 VDC and 25 A continuous (30 A peak), it works on 12V and 24V systems and can control one or several ventilators at once. The housing is waterproof, the unit is current-limited and transient-suppressed, and it connects with standard 6.3 mm flat connectors. Supplied with potentiometer knob and instructions.

Key features

  • Stepless 0 to 100% speed control
  • 11 to 30 VDC input, 12V and 24V systems
  • 25 A continuous, 30 A max output
  • Waterproof housing, 80 x 60 x 20 mm
  • Current-limited and transient-suppressed
  • Controls one or multiple ventilators
Ideal for:AmbulancesCampersHorse trailersBuses & coachesCommercial vansLivestockMarine
Input voltage11 to 30 VDC
Max. continuous output25 A
Max. output current30 A
Potentiometer4k7
Connectors6.3 mm flat connectors
Housing80 x 60 x 20 mm (30 mm incl. connectors), waterproof
Range0 to 100%
Systems12V and 24V (11 to 30 VDC input)
Article no.VariantPrice ex VATIncl. 21% VAT
30-3004Speedcontrol€75€90.75
Can I use it together with a 3-way switch?

Yes. The switch selects blow / off / suck, the Speedcontrol sets the speed. The slower the fan runs, the quieter it is and the less air it moves.

Complete the system

Goes well with the Speedcontrol.

Shop all
BestsellerEMC approved
Le Mans Rooftop Ventilator
Rooftop Ventilators

Le Mans Rooftop Ventilator

The 850 m³/h benchmark in vehicle ventilation

Retail price €185€105ex VAT€127.05 incl.5 options
EMC approved12V / 24V
Round Rooftop Ventilator
Rooftop Ventilators

Round Rooftop Ventilator

850 m³/h in a classic round housing

Retail price €159€105ex VAT€127.05 incl.5 options
Illuminated3-way

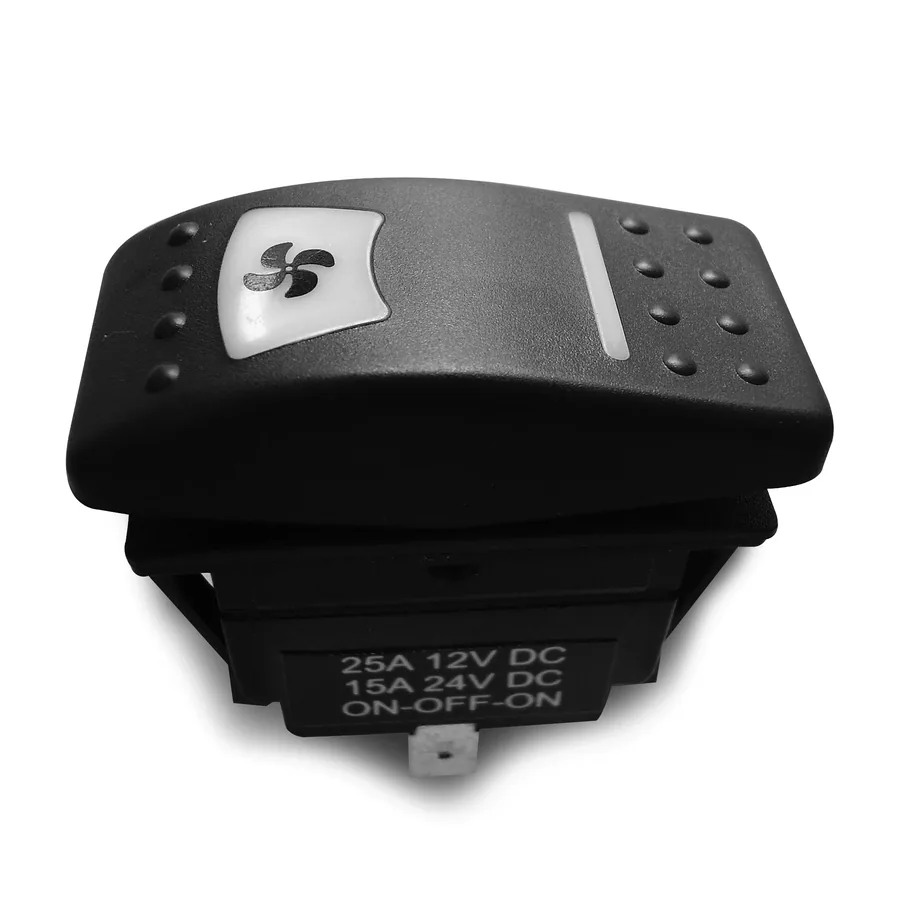

Fan Switch 89-4008 with Symbols
