3-Way Switch Round 89-4002

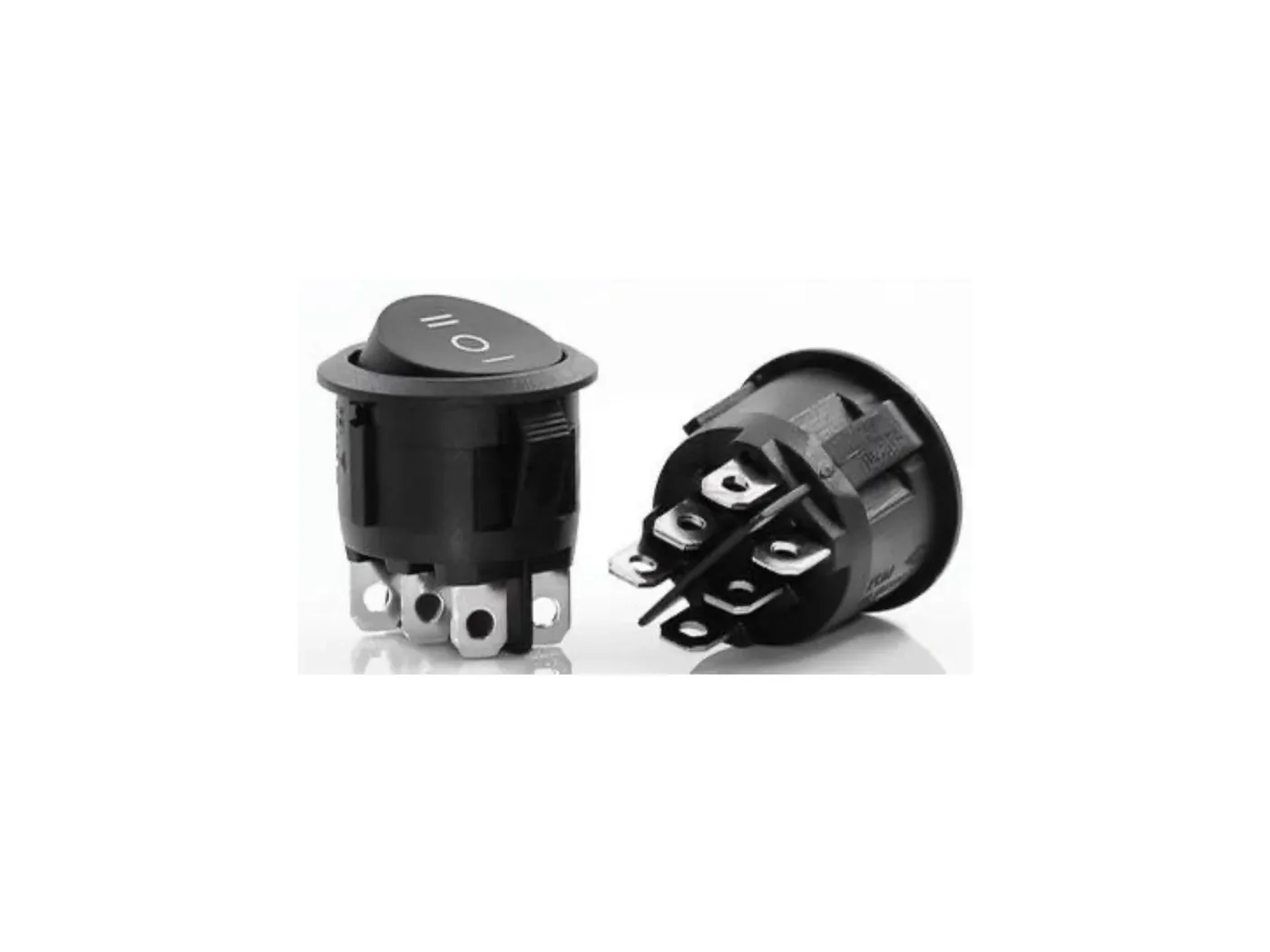

The round 3-position switch for our rooftop ventilators. Flick up for intake, down for exhaust, centre for off. It is a double-changeover switch that reverses the motor, so you get both directions from a single control.

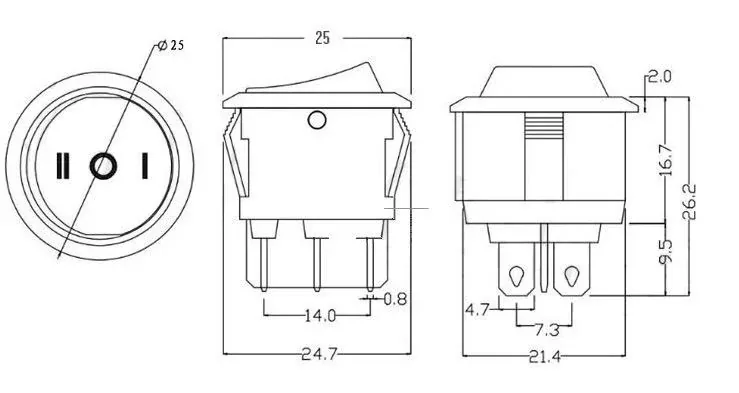

Suitable for most vehicles: it presses into a round dashboard hole or a prepared switch holder. Check the mounting hole dimensions in the datasheet before ordering. Combine with the Speedcontrol for stepless speed adjustment.

Key features

• 3-position: on-off-on
• Double changeover (reverses fan direction)
• Round built-in model, Ø 20 mm hole
• Works with Le Mans, Le Mans LL, Round and Winglet
• Combine with Speedcontrol
• On extraction-only models (Le Mans LL, Winglet) simply use a single position
