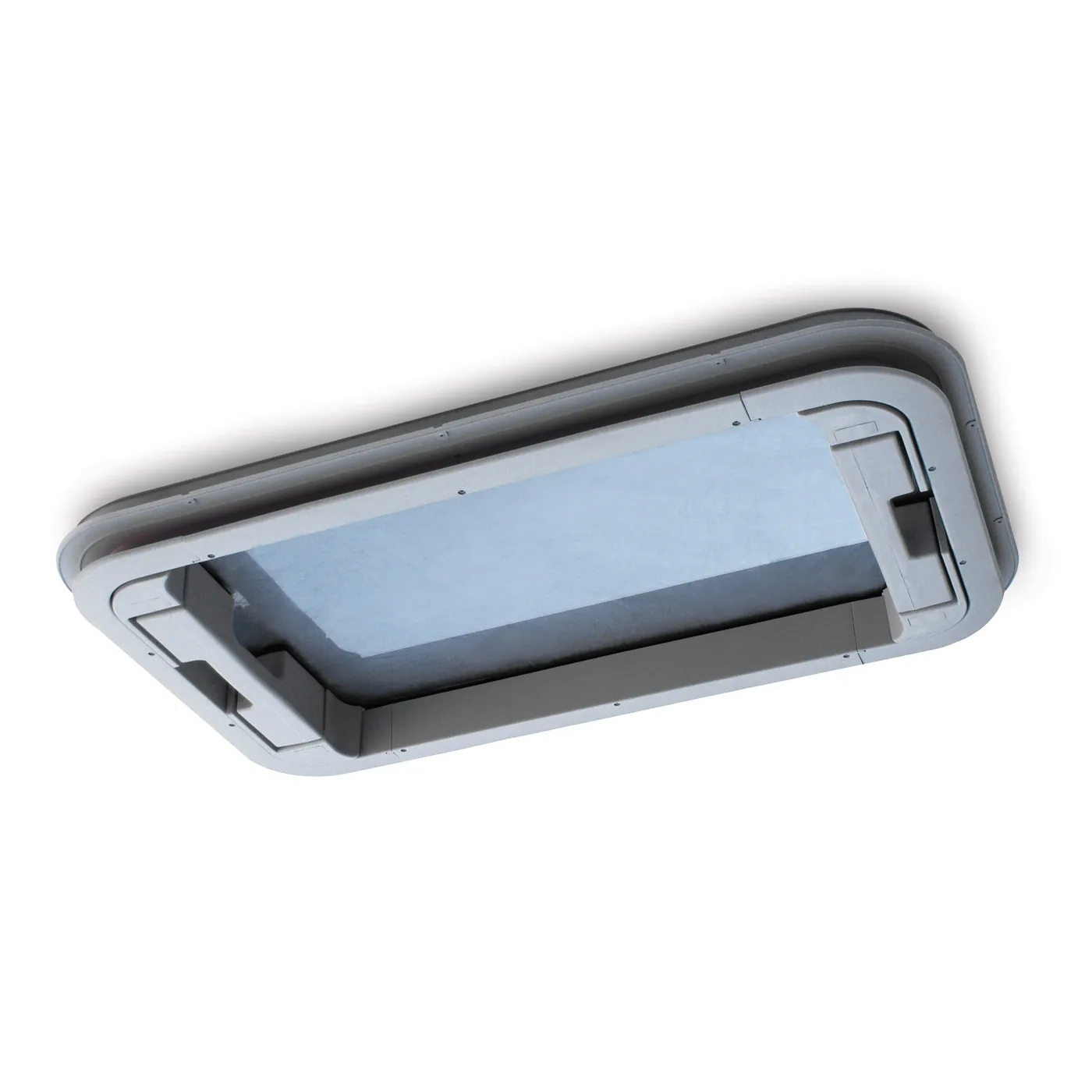

Roof Hatch Manual 970 x 530 Emergency Exit

The large emergency roof hatch for buses, coaches and specialty vehicles. At 970 x 530 mm it meets the EC 2001/85 emergency exit standard and doubles as a generous ventilation and daylight opening.

The dark tinted glass dome is homologated ECE 43R and the hatch is homologated EC 2004/104. High-quality gaskets, an internal frame that mounts easily in the pre-drilled outside frame (1080 x 640 mm), interior trim frame and a break-glass hammer complete the package. Suits roof thicknesses from 30 to 70 mm.

Also available as an electric version (90-6000-E) with our 30-6000 control unit.

Key features

• Aperture 970 x 530 mm, R80 corners
• Emergency exit according to EC 2001/85
• Dark glass dome homologated ECE 43R
• Homologated EC 2004/104
• Suits roof thickness 30 to 70 mm

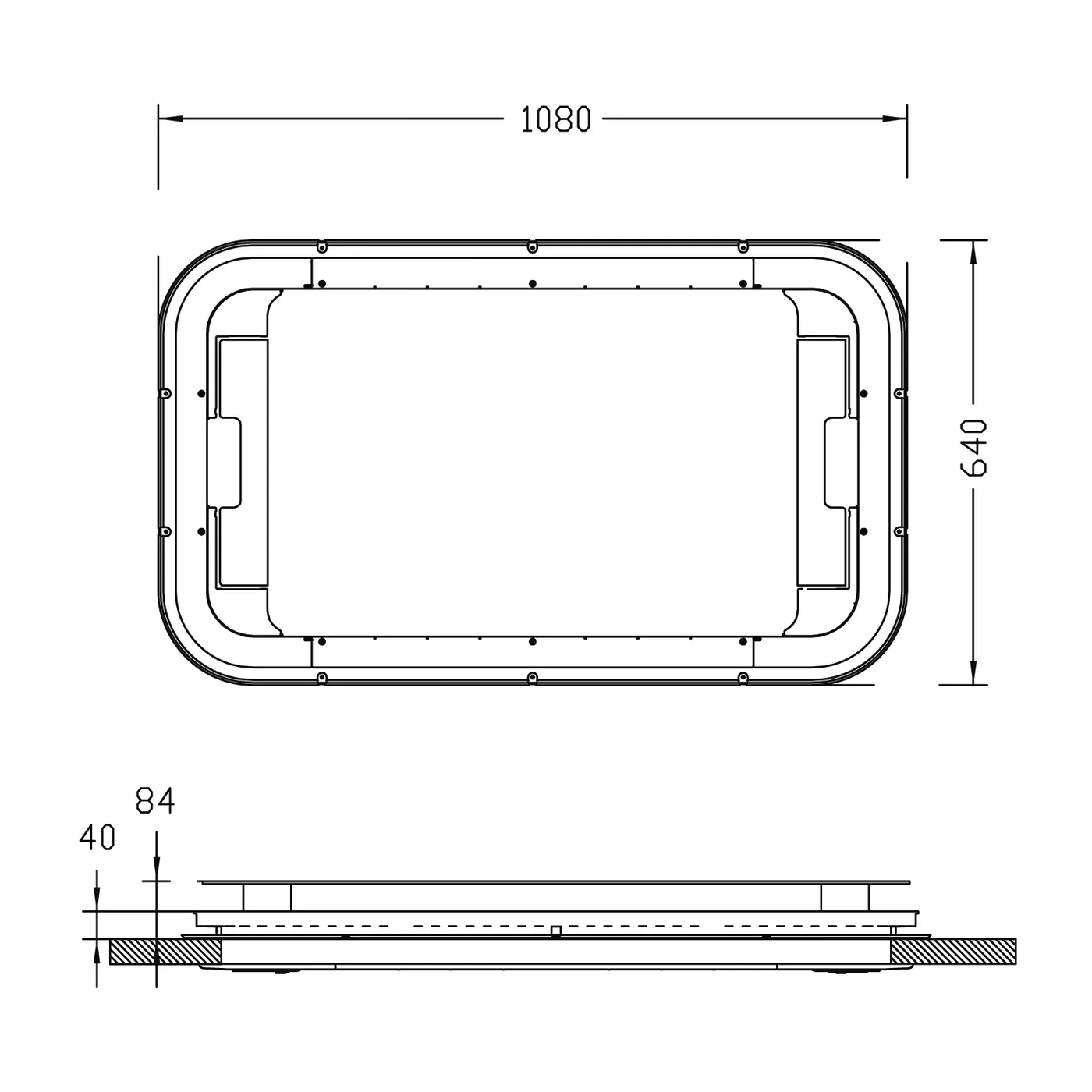

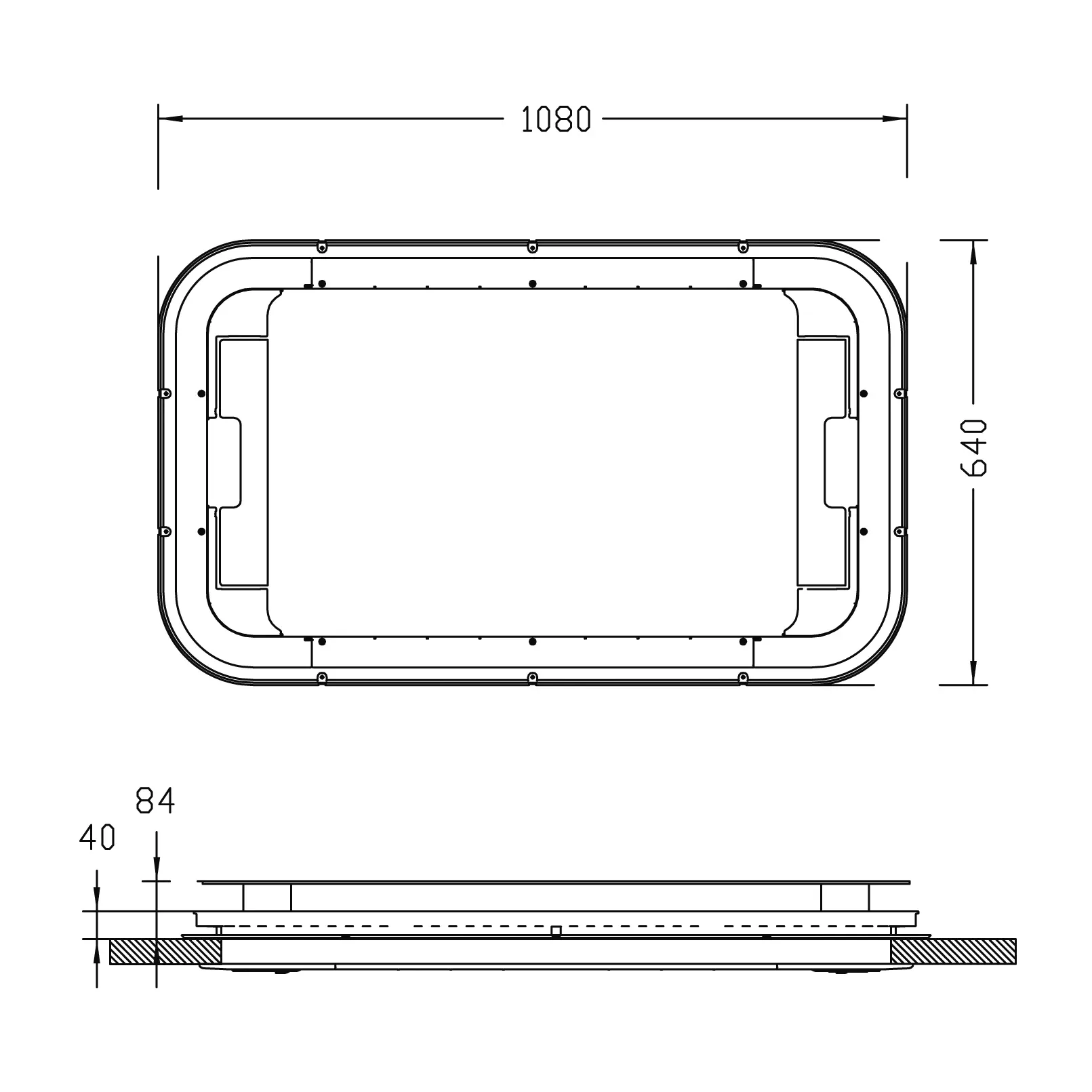

• High-quality gaskets, pre-drilled outer frame 1080 x 640 mm
• Break-glass hammer included
• Grey finish, approx. 14 kg
