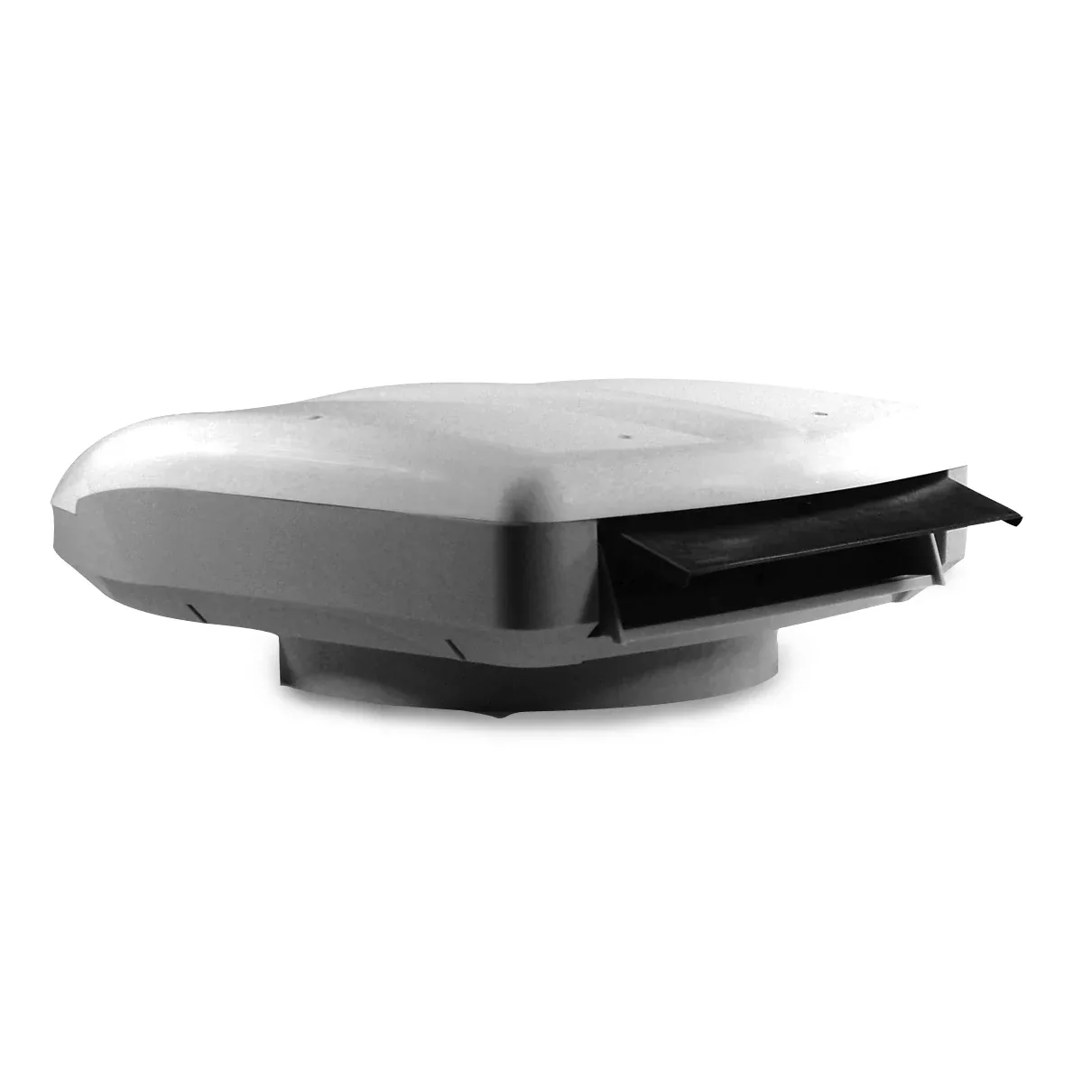

Le Mans LL Brushless Rooftop Ventilator
Rooftop Ventilators

Le Mans LL Brushless Rooftop Ventilator

Brushless. Longer life. Lower draw.

Specified by European bodybuilders for 20+ years · EMC test report available
€259RRP €299
Incl. 21% VAT · ex-VAT for trade accounts · free EU shipping from €150
Article no. 02-4200
Voltage
Speed control
Complete the set and save 10%
Le Mans LL Silent Extraction KitBrushless fan with speed control, switch and design valve. €330 €366.90
View kit
Frequently added
Total with selected add-ons

The long-life version of the Le Mans. A brushless motor pulls 515 to 565 m³/h of air out of your vehicle at only 34 W, with no brushes to wear out. Ideal for damp loading areas, animal transport, chemical transport and coaches.

The Le Mans LL takes the proven Le Mans shape and fits it with a brushless motor. The result: a ventilator that runs for years without servicing, draws only 34 W and is available with an integrated speed control unit.

The LL is an extraction-only ventilator, which is exactly what most loading areas, animal compartments and coach toilets need: a constant, healthy discharge of humid or contaminated air. Pair it with a floor ventilator for a complete airflow loop.

Order the 12V or 24V version, with or without built-in speed control. A 3-way switch and interior valve are available separately. Saw template included.

Key features

  • Brushless motor, maintenance-free
  • 515 m³/h (12V) or 565 m³/h (24V) extraction
  • Only 34 W power consumption
  • 3100 rpm, 65 dB(A)
  • Optional integrated speed control unit
  • Grey ABS roof ring, white PA6 cover
  • Roof opening 230 mm, EMC approved, saw template included
Ideal for:Commercial vansLivestockBuses & coachesHorse trailers
Airflow515 m³/h (12V) · 565 m³/h (24V)
Voltage12V or 24V DC
Power34 W
Nominal speed3100 rpm
Noise level65 dB(A)
FunctionSuction (extraction)
MotorBrushless
Roof openingØ 230 mm
Mounting heightapprox. 100 mm
MaterialsABS roof ring (grey), PA6 cover (white RAL 9010)
ApprovalEMC approved
Article no.VariantPrice incl. VAT
02-420012V€259
02-425012V · with speed control unit€299
02-430024V€259
02-435024V · with speed control unit€299
What is the difference with the standard Le Mans?

The LL uses a brushless motor (longer life, lower power draw) and extracts only. The standard Le Mans can blow and suck and moves more air (850 m³/h).

Can I control the speed?

Yes: order the 02-4250 (12V) or 02-4350 (24V) version with the integrated speed control unit. The separate Speedcontrol 30-3004 is designed for the brushed Le Mans and Round ventilators.

Complete the system

Goes well with the Le Mans LL.
